How to open electric gate manually: complete guide for 2025

What happens when your electric gate refuses to open during a power outage or system malfunction? Every property owner with an automated gate system eventually faces this frustrating scenario, whether it’s a sudden blackout during a storm or an unexpected mechanical failure at the worst possible moment.

Knowing how to open electric gate manually isn’t just convenient, it’s essential for maintaining access to your property during emergencies. The ability to bypass electronic systems can mean the difference between being stranded and having complete control over your gate’s operation.

This guide provides step-by-step instructions for manually opening electric gates of all types. You’ll learn the universal techniques that work across swing and sliding gate systems, master essential safety protocols, and discover troubleshooting methods that ensure reliable manual operation when you need it most. By the end, you’ll have the confidence to handle any gate emergency with professional expertise.

Source: Gemini

Understanding electric gate manual operation: how to open electric gate manually

Electric gates are sophisticated automation systems designed to provide security and convenience for residential and commercial properties. However, every properly designed electric gate system includes a manual override feature that allows operation without electrical power. This manual release mechanism is essential for emergency situations, power outages, and maintenance procedures.

Modern electric gates have built-in release mechanisms that allow manual operation, but using excessive force might damage the gate or its motor. Understanding how these systems work is crucial for every property owner with an automated gate system.

The manual release system typically consists of a key, lever, or handle that disengages the gate from the motor’s drive mechanism. This allows the gate to move freely while maintaining its structural integrity and safety features.

When you need to open electric gates manually

Power outages are the most frequent reason for electric gate motor failure, as these systems depend on electricity to operate. During blackouts caused by severe weather, equipment failure, or utility maintenance, manual operation becomes essential for property access.

Gate motors can experience mechanical malfunctions including motor burnout, wiring problems, or control system failures. Additionally, remote control batteries could run out or remotes can be damaged or lost, preventing normal gate operation.

In emergency circumstances such as fire evacuation, medical emergencies, or security situations, quick manual access becomes critically important for safety and rapid response. Regular maintenance procedures may also require manual operation to access specific components.

Safety precautions before manual operation

Source: Gemini

Before attempting to manually open any electric gate, prioritize safety with these essential precautions:

• Power isolation. If you know how to disable your gate motor’s power supply safely, you should do so. Locate the control box or main power switch and turn off electrical supply to prevent accidental motor engagement during manual operation
• Environmental assessment. Ensure there are no obstacles or people nearby and proceed with careful attention and patience. Check for vehicles, pedestrians, or other obstructions that could create safety hazards during manual operation
• Proper tools. Ensure you have the correct manual release key or tools before beginning the process. Most systems come with specific keys or require standard tools like Allen keys or wrenches
• Understanding your system. Different types of gate openers have different manual release mechanisms. Familiarize yourself with your specific gate type and manufacturer’s instructions

How to open swing gates manually

Source: Gemini

Swing gates are among the most common residential gate types, with manual release procedures varying by motor configuration.

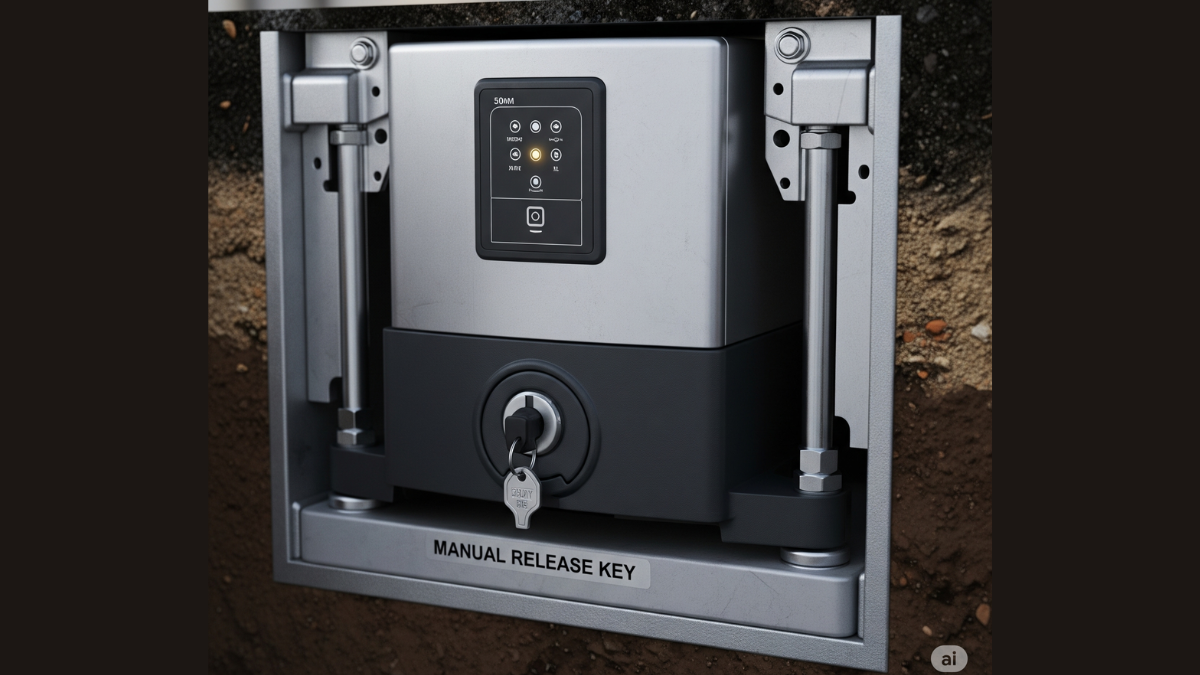

Underground motor systems

For swing gates with underground motors, the manual release mechanism is typically located at the base of each gate leaf:

1. Locate the release key slot. On swing gates that have underground motors you will find the slot for the manual release key attached to the bottom of the gate on top of each underground motor
2. Insert and turn the key. Insert the manual release key, and turn to unlock the gates from the motors
3. Open the gate. Once disengaged, carefully push or pull the gate leaf to open
4. Repeat for double gates. If you have a dual swing gate system, repeat the process for the second gate leaf

Above-ground motor systems

For swing gates with visible motors and arms:

1. Locate the motor unit. Find the motor housing and connecting arm
2. Find the release mechanism. To put the gate motor in neutral, find the bolt underneath and loosen it using the provided tool
3. Disengage the motor. The arm must be lowered after the bolt has been released to open the electric gate manually
4. Operate the gate. Push or pull the gate to your desired position

Ram-style motors

By turning this lever, it releases the motor from the swing arm which then allows the gate to move freely. Ram motors typically have a release mechanism on the motor housing that requires a key to access and a lever or screw to disengage.

Explore underground gate systems designed for seamless manual release and operation.

Explore gate systems →

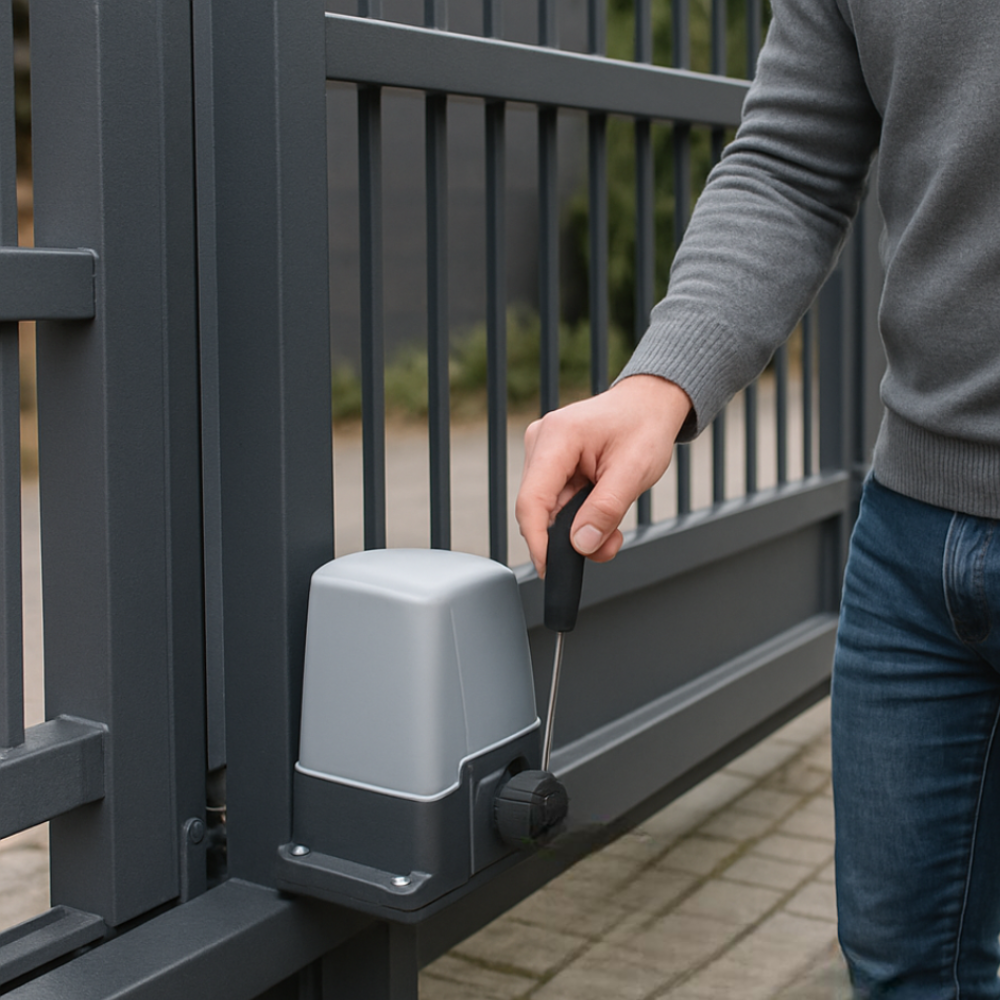

How to open sliding gates manually

Sliding gates require a different approach due to their track-based operation system.

Standard sliding gate procedure

1. Locate the motor housing. The manual release mechanism is often near the motor unit mounted along the track
2. Access the release mechanism. This release usually has a lever or a key switch that disengages the gate from the motor’s drive mechanism
3. Disengage the motor. Activate the manual release by pulling the lever or turning the key
4. Slide the gate. For sliding gates, turn the release to slide the gate open

Removing motor housing covers

Some covers on sliding gates have screws that will need to be removed. Put the screws in a safe place so they don’t get lost. This provides access to the internal release mechanism when external access isn’t available.

Manual release without keys

If you find yourself without the manual release key, several options exist.

Emergency release mechanisms

Many electric gates are equipped with an emergency release mechanism, designed for situations where the gate’s primary operating system fails. These mechanisms are usually accessible without special tools.

Manual release cords

Many electric gates are equipped with a manual release cord, which can be used to disengage the gate from the motor. The cord is often red and easily identifiable. To use this system:

1. Ensure the gate is stationary
2. Pull the red release cord firmly
3. Manually operate the gate as needed

Professional key replacement

Manual release keys are available from authorized dealers for all current motors and most older or unavailable motors. Contact your gate manufacturer or a professional technician to obtain replacement keys.

Troubleshooting manual release issues

Over time the manual release mechanism can seize up, you will find it near to impossible to release the gates if you do not keep on top of servicing. Regular maintenance and lubrication prevent this issue.

The manual release key for your electric gates is just as important as your house key and needs to be left in a safe place. Consider keeping spare keys in a secure lockbox near your gate.

Browse 50+ years of Italian engineering excellence in automated gate solutions.

View automated gate solutions →

Restoring automatic operation

After manual operation, proper restoration of automatic function is essential.

Swing gates

Once the power is back on, you can get your electric gate to work normally again by putting the arm back where it was and tightening the bolt. Ensure proper alignment before re-engaging the motor.

Sliding gates

To restore the original electric function, close the little door on the gate motor and lock it back in place. Verify that the gate is properly positioned before restoring power.

Testing automatic function

After restoration:

1. Test the gate’s automatic operation with the remote control
2. Verify safety features are functioning properly
3. Check for any unusual noises or movements
4. Ensure the gate opens and closes completely

Why professional gate systems matter

When considering electric gate installation or upgrade, the importance of professional-grade systems cannot be overstated. Established manufacturers like those with over 50 years in the industry bring invaluable expertise to gate automation, incorporating robust manual release mechanisms refined through decades of real-world application.

Key advantages of professional systems include:

• Proven reliability. Systems tested through countless installation cycles
• Superior manual release design. Mechanisms that remain functional even after years of service
• Comprehensive support. Access to replacement parts and technical assistance
• Customization capabilities. Solutions tailored to specific property requirements
• Advanced safety features. Systems designed with multiple fail-safes and emergency protocols

Conclusion

We’ve covered the essential techniques for manually opening electric gates, from basic safety protocols to universal manual release procedures. The key takeaway is clear: being prepared with the right knowledge and tools transforms potential emergencies into manageable situations. Whether you’re dealing with swing gates, sliding gates, or complex underground motor systems, the manual release mechanisms are your gateway to maintaining property access regardless of power or electronic failures.

The true value lies not just in knowing these techniques, but in understanding that quality gate systems with decades of engineering expertise provide more reliable manual operation when you need it most. Professional-grade systems ensure that your backup plans actually work when called upon.

Have you ever found yourself locked out by a malfunctioning gate? What was your experience, and how did you handle the situation? Share your stories in the comments below, your experience could help other property owners prepare for similar challenges.

Take a moment this week to locate your manual release key and test your gate’s manual operation during a calm moment. Practice makes perfect, and familiarity with your system today prevents panic tomorrow.

Ready to upgrade to a more reliable gate system? Explore our comprehensive guides on choosing professional-grade automation solutions that combine cutting-edge technology with time-tested reliability, because your property deserves nothing less than excellence.
